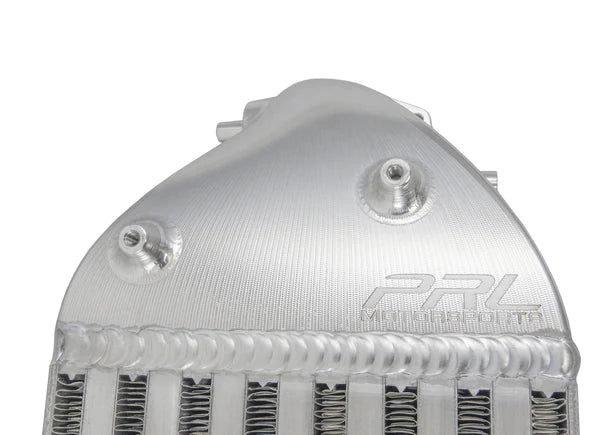

PRL MOTORSPORTS 2016-2021 Honda Civic 1.5T Intercooler Upgrade

INSTALLATION:
PDF - 2016-2021 Honda Civic 1.5T Intercooler Install Instructions



Important Notes:

• NO ECU CALIBRATION REQUIRED
• THERE ARE (2) TOTAL O-RINGS IN THE FACTORY CHARGE PIPE SYSTEM. O-RINGS MAY BE SUBJECT TO REPLACEMENT IF TORN, DRY-ROTTED, DISFORMED OR HIGH MILEAGE
• REMOVAL OF LOWER FACTORY INTAKE AIR BOX DAMPER IS RECOMMENDED FOR OPTIMAL FITMENT
• FITS FACTORY CHARGE PIPING OR PAIR WITH OUR CHARGE PIPE UPGRADE KIT FOR OPTIMAL PERFORMANCE
• PLEASE CALL OR EMAIL IF PAIRING WTH V1 CHARGE PIPING
• OEM Honda Part Number 19710-5AA-A01



Technical Notes:

It’s no secret that Honda’s 1.5L turbo Civic is extremely susceptible to heat-soak, especially when retaining the factory intercooler. Excessive heat-soak increases the risk of detonation and causes major power-loss due to high charge air and cylinder temperatures. These issues become even more prevalent with spirited driving and/or increased power outputs. The PRL Motorsports intercooler upgrade decreases charge air temperatures while increasing potential airflow with its dense 550+ horsepower rated (though we have pushed 600+) 25.5x4x6.3” bar-and-plate bar-and-plate core and machined billet aluminum end tanks! This intercooler utilizes factory mounting spots with our embossed end tanks. Kits will come with all hardware needed for a seamless install.

Performance Gains:

• (1) Intercooler Assembly w/ Billet End Tanks
• (2) Air Guides w/ Stainless Hardware
• (2) Billet Aluminum Factory Charge Pipe Adapters
• (1) Cardboard Stencil w/ “PRL” Logo
• (2) PRL Factory Style Replacement O-Rings

Data:

TESTING DATA BLOG POST

DESIGN BLOG POST
INTERCOOLER CORE DESIGN BLOG POST
